UHMWPE-Steel Composte Pipe

UHMWPE composite pipe is made of UHMWPE pipe and carbon steel pipe. Its outer layer is the steel pipe with flange as the pressure standing protective layer, UHMWPE pipe is lined inside as wear layer, anti corrosive pipe with extremely smooth surface. The inner UHMWPE pipe is extended out of the outer layer of carbon steel pipe and flanged as connection of pipe.
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1002
Product serial number
Quantity
-
+
Stock:
Keyword:
composte
pipe
of
steel
and
the
uhmwpe
10
is
high
1
Description
Parameters
Description


UHMWPE-Steel Composte PipeUHMWPE-Steel Composte Pipe


Produce process of UHMWPE -steel Pipe :

UHMWPE composite pipe is made of UHMWPE pipe and carbon steel pipe.

Its outer layer is the steel pipe with flange as the pressure standing protective layer, UHMWPE pipe is lined inside as wear layer, anti corrosive pipe with extremely smooth surface. The inner UHMWPE pipe is extended out of the outer layer of carbon steel pipe and flanged as connection of pipe.

Detailed specification as below:

Outer steel pipe Inner uhmwpe pipe Uhmwpe-steel composited pipe
Type Specification/mm m/kg Specification /mm Inner diameter/mm m/kg m/kg Working pressure Mpa
Straight seam steel pipe Φ89*3 6.36 Φ75*8 59 1.63 7.99 3.0
Seamless steel pipe Φ102*4 9.67 Φ89*10 68 2.41 12.08 4.0
Straight seam steel pipe Φ140*3.5 11.79 Φ130*10 110 3.66 15.45 3.0
Straight seam steel pipe Φ165*3 11.99 Φ159*10 139 4.54 16.53 3.0
Spiral steel pipe Φ180*5 21.57 Φ168*10 148 4.81 26.38 4.0
Spiral steel pipe Φ194*4 18.74 Φ184*12 160 6.29 25.03 4.0
Spiral steel pipe Φ219*6 31.52 Φ203*8 187 4.57 36.09 4.0
Spiral steel pipe Φ245*6 35.36 Φ230*10 210 6.70 42.06 4.0
Spiral steel pipe Φ273*6 39.51 Φ256*10 236 7.49 47.00 4.0
Spiral steel pipe Φ325*6 47.20 Φ310*10 290 9.14 56.34 4.0
Spiral steel pipe Φ373*4 36.40 Φ360*10 340 10.66 47.06 4.0
Spiral steel pipe Φ377*6 54.89 Φ360*10 340 10.66 65.55 3.0



Features


Character of UHMWPE Steel Composte Pipe

1. High wear resistance, the wear resistance is 4 to 7 times of Q235 steel pipe, 10 times of HDPE, it has the smallest friction coefficient in plastic ranks

2. High impact strength, is 5 times of oridinary PE pipes, 4 times than HDPE, 2 times of polycarbonate pipe, and 10 times of PTFE pipe

3. Low-energy, high self-lubrication and not adhesion, friction coefficient of only 0.006, the UHMWPE pipe can save energy of 20% under the same flow rate

4. Without scale sediment/no-scale, surface roughness of Ra0.00022, no dirt, no bacterium in long term service

5. High weatherability, the molecular weight of UHMWPE is more than 2 million, as saturated molecular structure, it has strong ability of aging under ultraviolet light , and mechanical properties is stable if not lower than -70℃

6. No pipeline leakage, electric melting connection make the pipeline without funnelled

7. Cost-saving, Maintenance-free: small working face, low requirement of foundation, and with the performance of wear-resisting, corrosion resistance, frost resistance and anti-pollution, etc, after the operation, the pipe do not need to make daily maintenance, such as anti-rust and freeze-proofting, descaling, etc, and maintenance cost can be saved by more than 95%.

8. Non-toxic, odourless and high environment protection: it has smooth surface, will not be microbial adhesion in the ocean or sewage engineering, and ensure the stability of water quality

9. High toughness, breaking elongation≥350%, without fracture by charpy impact test

10. High corrosion resistance, as saturated molecular structure, it has high chemical stability,



Specifications


Product is checked and re-checked at every stage to ensure fault-free performance

a2a2

Technical comparison of UHMWPE and other material

Item Test Method Unit Uhmwpe pipe Hdpe pipe Steel pipe
Viscosity-average Molecular Weight ISO1628-3 104g/mol 300-1050 <50 --
Approx Melting Temperature ISO11357.3 136 1129 1410
Water Absorption ISO62-1999 % <0.01 <0.01 --
Coefficient of liner thermal expansion ISO11359-2 10-4/℃ 1.5 1.2 0.17
Density ISO1183-1-2004 g/cm3 0.935-0.945 >0.940 7.8
(0.45Mpa) Head deformation tempat ISO75 85 71 1230
Tensile strength ISO527 Mpa >39 <25 550
Yield strength ISO527 Mpa ≥22 20 ≥245
Tensile elongation ISO527 % ≥250 ≥350 20
Gap beam impact Strength ISO179 KJ/m2 No fracture <27 No fracture
Rockwell hardness ISO2039-2 R 40 33 45(C)
Friction coefficient ISO8295 -- 0.05-0.11 0.28 0.58
Mortar wearindec -- -- 1 10 7
Scaling -- -- No scaling Slight Heavy
Corrosion resistance -- -- excellent Common Bad



Application


a3a3



UHMWPE lined steel pipe combinds advantages of both UHMWPE and steel which make it wear resistant, impact resistant, anti-corrosion, resistant to high pressure, self-lubricating, impact resistant.

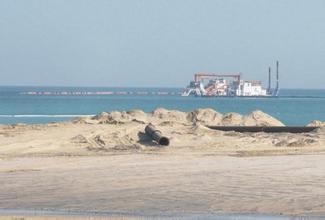

The pipeline equipments are widely used in dredging, mining, power plant,etc.

Chemical industry:the transmission of sand slurry, mud,

Thermal power system:powder and coal ash conveying

Mining industry:backwater pipelines, mine tailings and slurry transmission

Coal industry:high-pressure transport of pulverized coal and coal-water slurry of coal preparation plant

And the transport of mud and corrosive media with slag in other industries
